Flash Type3D NAND3D aSLC SLC MLC MLC
Flash ProcessKioxia BiCS5 112LKioxia BiCS5 112L aSLC Mode Kioxia 24nm Kioxia 15nm Kioxia 15nm
SeriesPHANES-SAPHANES-SA HERMES-J HERMES-J MUSE-D
PHANES-SA SATA DOM
PHANES-SA SATA DOM
Capacity64GB~512GB16GB~128GB 4GB~32GB 4GB~128GB 8GB~128GB
Form-FactorVertical Standard (VS)
Horizontal Standard (HS)		Vertical Standard (VS)
Horizontal Standard (HS)		 Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)		 Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)		 Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)
CompatibilitySATA Revision 3.2SATA Revision 3.2 SATA Revision 3.1 SATA Revision 3.1 SATA Revision 3.1
Data transfer rateSATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/sSATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.)520 MB/sec520 MB/sec 220 MB/sec 230.3 MB/sec 530.0 MB/sec
Sequential write (Max.)450 MB/sec450 MB/sec 110 MB/sec 80.5 MB/sec 120.0 MB/sec
Operating temp. (STD/IND or WIDE)S : 0°C~+70°C
W : -40°C~+85°C		S : 0°C~+70°C
W : -40°C~+85°C		 S : 0˚C~+70˚C/
I : -40˚C~+85˚C		 S : 0˚C~+70˚C/
W : -40˚C~+85˚C		 S : 0˚C~+70˚C/
W : -40˚C~+85˚C
Power requirement+5V ± 5%+5V ± 5% +5V ± 5% +5V ± 5% +5V ± 5%
Wear-levelingDynamic & StaticDynamic & Static Static Static Static
TBWUp to 540 TBW at 512GBUp to 6,400 TBW at 128GB Up to 187.5 TBW at 32GB Up to 37.12 TBW at 128GB Up to 249.6 TBW at 128GB
Erase counts3,00030,000 60,000 3,000 3,000
Weight (Max.)20g20g 20g 20g 20g
Dimension (WxLxH,mm)VS : 22.00 x 43.67 x 7.50
HS : 22.00 x 37.50 x 15.00		VS : 22.00 x 43.67 x 7.50
HS : 22.00 x 37.50 x 15.00		 VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80		 VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80		 VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80
Conformal coating—— Optional Optional Optional
Warranty (Std./Ind.)2 years or within 3,000 erasing counts2 years or within 30,000 erasing counts 3/5 years or within 60,000 erasing counts 2 years or within 3,000 erasing counts 2 years or within 3,000 erasing counts

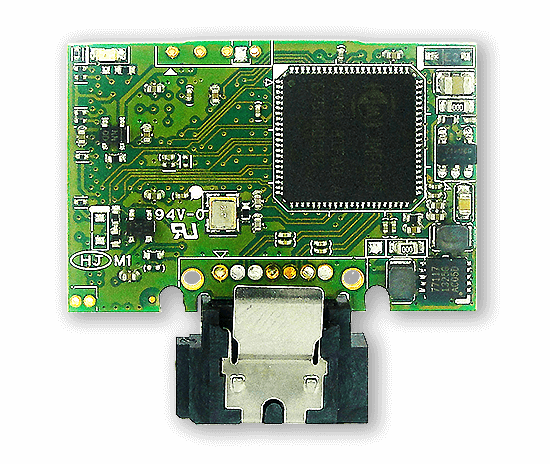

Flash Type SLC
Flash Process Kioxia 24nm
Series HERMES-J
Capacity 4GB~32GB
Form-Factor Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)
Compatibility SATA Revision 3.1
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 220 MB/sec
Sequential write (Max.) 110 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/
I : -40˚C~+85˚C
Power requirement +5V ± 5%
Wear-leveling Static
TBW Up to 187.5 TBW at 32GB
Erase counts 60,000
Weight (Max.) 20g
Dimension (WxLxH,mm) VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80
Conformal coating Optional
Warranty (Std./Ind.) 3/5 years or within 60,000 erasing counts

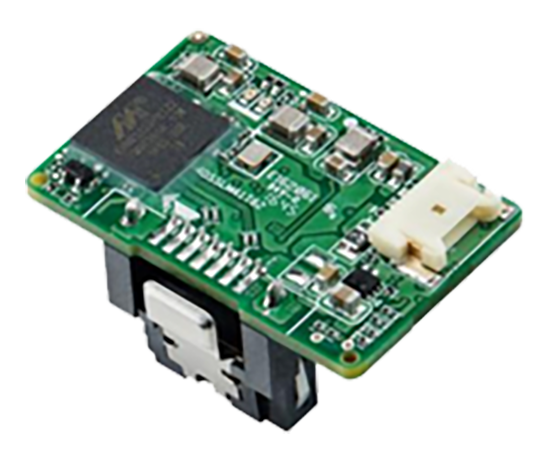

Flash Type MLC MLC
Flash Process Kioxia 15nm Kioxia 15nm
Series HERMES-J MUSE-D
Capacity 4GB~128GB 8GB~128B
Form-Factor Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)		 Vertical: STD. (VS) / Low profile (VL)
Horizontal: STD. (HS)/ Low profile (HL & HO)
Compatibility SATA Revision 3.1 SATA Revision 3.1
Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.) 230.3 MB/sec 530.0 MB/sec
Sequential write (Max.) 80.5 MB/sec 120.0 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/
W : -40˚C~+85˚C		 S : 0˚C~+70˚C/
W : -40˚C~+85˚C
Power requirement +5V ± 5% +5V ± 5%
Wear-leveling Static Static
TBW Up to 37.12 TBW at 128GB Up to 249.6 TBW at 128GB
Erase counts 3,000 3,000
Weight (Max.) 20g 20g
Dimension (WxLxH,mm) VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80		 VS : 18.00 x 38.50
VL : 30.10 x 28.75
HS : 18.00 x 30.30
HL : 30.00 x 20.08
HO : 30.00 x 28.80
Conformal coating Optional Optional
Warranty (Std./Ind.) 2 years or within 3,000 erasing counts 2 years or within 3,000 erasing counts
Flash Type3D NAND
Flash ProcessKioxia BiCS5 112L
SeriesPHANES-SA
PHANES-SA SATA DOM
Capacity64GB~512GB
Form-FactorVertical Standard (VS)
Horizontal Standard (HS)
CompatibilitySATA Revision 3.2
Data transfer rateSATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.)520 MB/sec
Sequential write (Max.)450 MB/sec
Operating temp. (STD/IND or WIDE)S : 0°C~+70°C
W : -40°C~+85°C
Power requirement+5V ± 5%
Wear-levelingDynamic & Static
TBWUp to 540 TBW at 512GB
Erase counts3,000
Weight (Max.)20g
Dimension (WxLxH,mm)VS : 22.00 x 43.67 x 7.50
HS : 22.00 x 37.50 x 15.00
Conformal coating—
Warranty (Std./Ind.)2 years or within 3,000 erasing counts
Flash Type3D aSLC
Flash ProcessKioxia BiCS5 112L aSLC Mode
SeriesPHANES-SA
PHANES-SA SATA DOM
Capacity16GB~128GB
Form-FactorVertical Standard (VS)
Horizontal Standard (HS)
CompatibilitySATA Revision 3.2
Data transfer rateSATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s
Sequential read (Max.)520 MB/sec
Sequential write (Max.)450 MB/sec
Operating temp. (STD/IND or WIDE)S : 0°C~+70°C
W : -40°C~+85°C
Power requirement+5V ± 5%
Wear-levelingDynamic & Static
TBWUp to 6,400 TBW at 128GB
Erase counts30,000
Weight (Max.)20g
Dimension (WxLxH,mm)VS : 22.00 x 43.67 x 7.50
HS : 22.00 x 37.50 x 15.00
Conformal coating—
Warranty (Std./Ind.)2 years or within 30,000 erasing counts
Flash Type3D NAND3D aSLC SLC MLC MLC
Flash ProcessKioxia BiCS5 112LKioxia BiCS5 112L aSLC Mode Kioxia 24nm Kioxia 15nm Kioxia 15nm
SeriesPHANES-SAPHANES-SA HERMES-J HERMES-J MUSE-D
PHANES-SA SATA DOM
PHANES-SA SATA DOM
SpecSheet—— Downloads Downloads (To be update)
DataSheetDownloadsDownloads Downloads Downloads Downloads
DimensionSee datasheetSee datasheet Downloads Downloads Downloads
